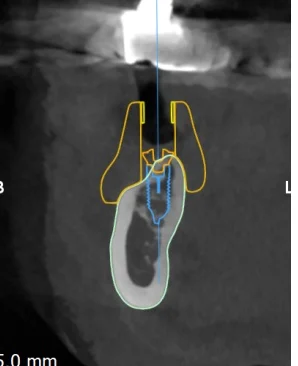

Site
46
INTERNA® Ø4.25 × 10 mm
IIPECA4210
- Abutment
- Straight MULTI-IM®, 2 mm collar
- Sleeve top
- 10.52 mm above the platform
Bone densityD4 · 280 HU
All cases
Guided surgery · Full arch
A guided lower full arch on six BTI implants
Six BTI INTERNA® Narrow implants placed through a pin-fixed surgical guide and restored on straight MULTI-IM® abutments — a lower jaw prepared for a screw-retained full-arch prosthesis, planned on the CBCT before the first incision.
- Surgery
- Prof. Dr. Waleed Abbas
- Guided surgery design
- Dr. Dina Abed
- Photon Dental Lab
- CBCT imaging
- Photon Scan
- Implants & components
- BTI Biotechnology Institute
- supplied by Integra Egypt
Contains surgical footage · for dental professionals
In the film
- Arch
- Lower jaw, full arch
- Implants
- 6 × BTI INTERNA® Narrow
- Abutments
- Straight MULTI-IM® on all six
- Guide
- Fixed by 3 lateral pins, Ø1.5 × 20 mm
- CBCT
- 668 slices at 0.15 mm
- Plan check
- No collision at any implant or pin

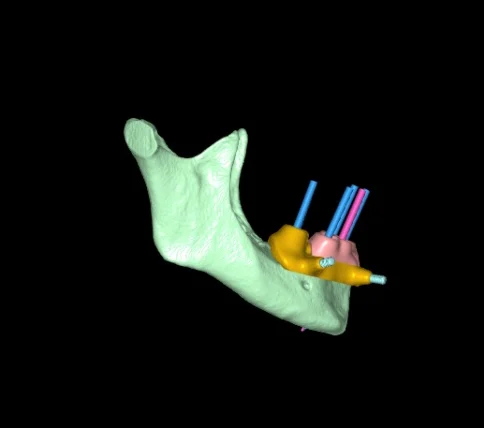

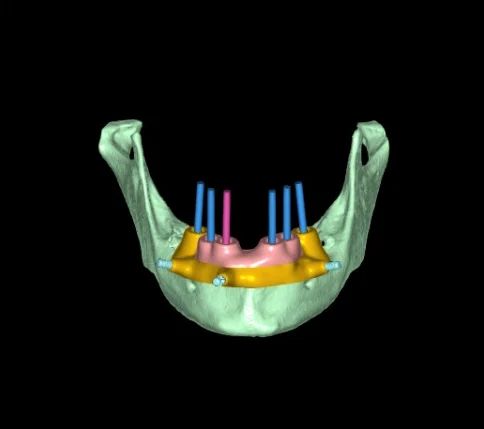

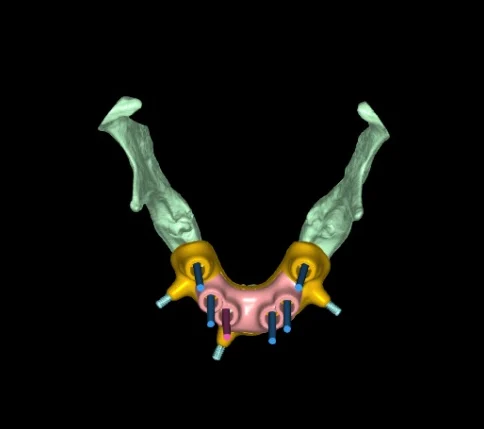

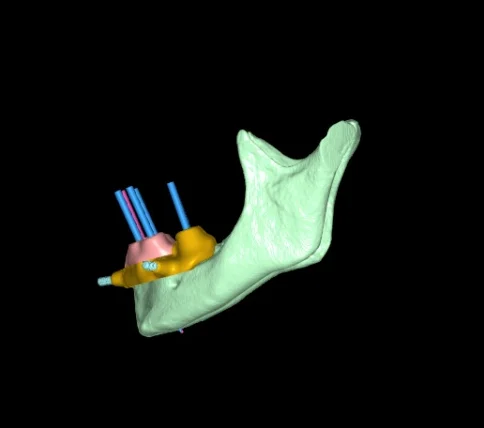

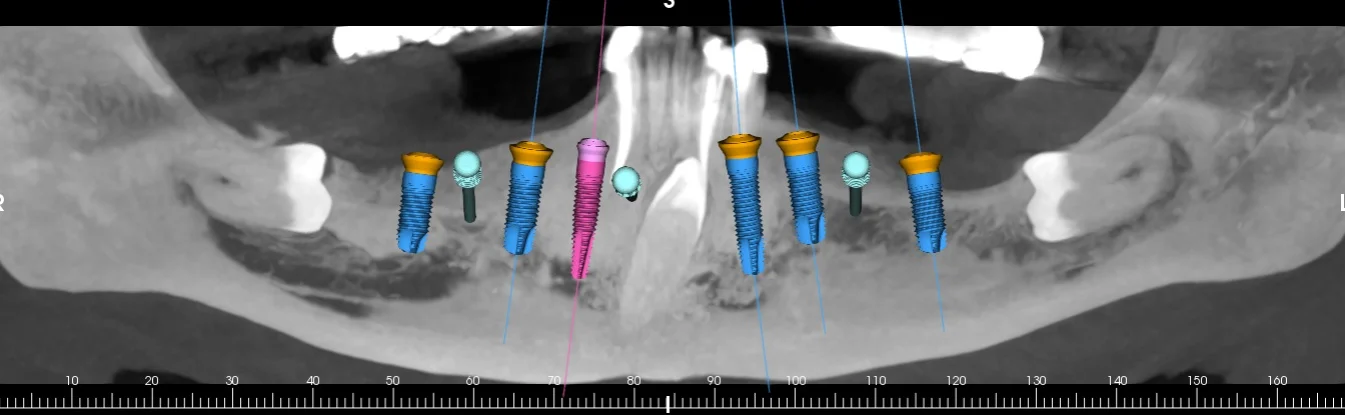

The digital plan
Planned on the CBCT, before the first incision
The CBCT from Photon Scan was reconstructed in 3D and the six implants were positioned for a screw-retained full-arch restoration on straight MULTI-IM® abutments. Dr. Dina Abed at Photon Dental Lab then designed the surgical guide around them, held in place by three lateral fixation pins.
Site by site
Six implants, each sized to its own site
All six are BTI INTERNA® Narrow implants. The longest, at Ø3.5 and Ø3.75 mm, sit in the denser front of the jaw; shorter Ø4.25 mm ones go toward the molars, where the density readings were lowest. Every site carries a straight MULTI-IM® abutment for the full-arch restoration.

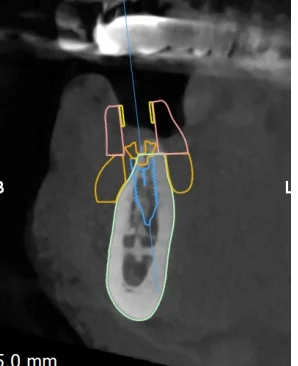

Narrow
Site
44
INTERNA® Ø4.25 × 11.5 mm
IIPECA4211
- Abutment
- Straight MULTI-IM®, 2 mm collar
- Sleeve top
- 9.02 mm above the platform
Bone densityD3 · 559 HU

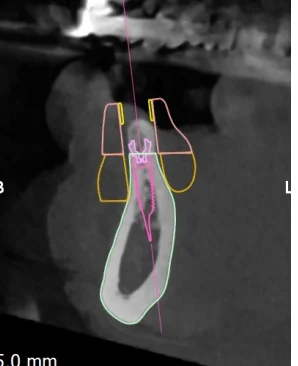

Site
43
INTERNA® Ø3.5 × 15 mm
IIPECA3515
- Abutment
- Straight MULTI-IM®, 2 mm collar
- Sleeve top
- 9.02 mm above the platform
Bone densityD3 · 692 HU

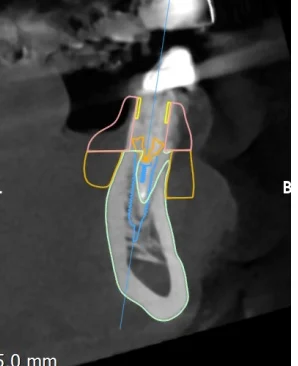

Site
33
INTERNA® Ø3.75 × 15 mm
IIPECA3715
- Abutment
- Straight MULTI-IM®, 2 mm collar
- Sleeve top
- 9.02 mm above the platform
Bone densityD2 · 1092 HU

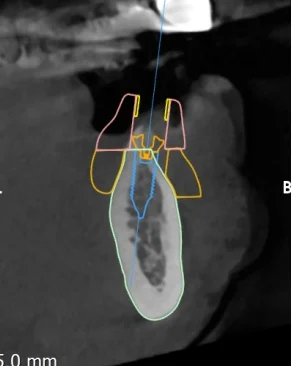

Site
34
INTERNA® Ø4.25 × 11.5 mm
IIPECA4211
- Abutment
- Straight MULTI-IM®, 2 mm collar
- Sleeve top
- 9.02 mm above the platform
Bone densityD3 · 416 HU

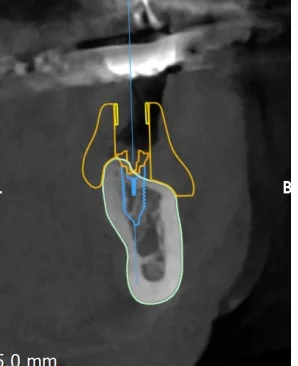

Site
36
INTERNA® Ø4.25 × 10 mm
IIPECA4210
- Abutment
- Straight MULTI-IM®, 2 mm collar
- Sleeve top
- 10.52 mm above the platform
Bone densityD3 · 397 HU
Bone density is the planning software's mean grey value inside each planned implant, on its HU scale (D1 > 1250 · D2 850 – 1250 · D3 350 – 850 · D4 < 350). CBCT grey values depend on the scanner's calibration, so they are an estimate, not a calibrated measurement.
BTI components in this case
- INTERNA® Narrow Ø3.5 × 15 mmIIPECA3515× 1
- INTERNA® Narrow Ø3.75 × 15 mmIIPECA3715× 1
- INTERNA® Narrow Ø4.25 × 10 mmIIPECA4210× 2
- INTERNA® Narrow Ø4.25 × 11.5 mmIIPECA4211× 2
- Straight MULTI-IM®, 2 mm collar× 6

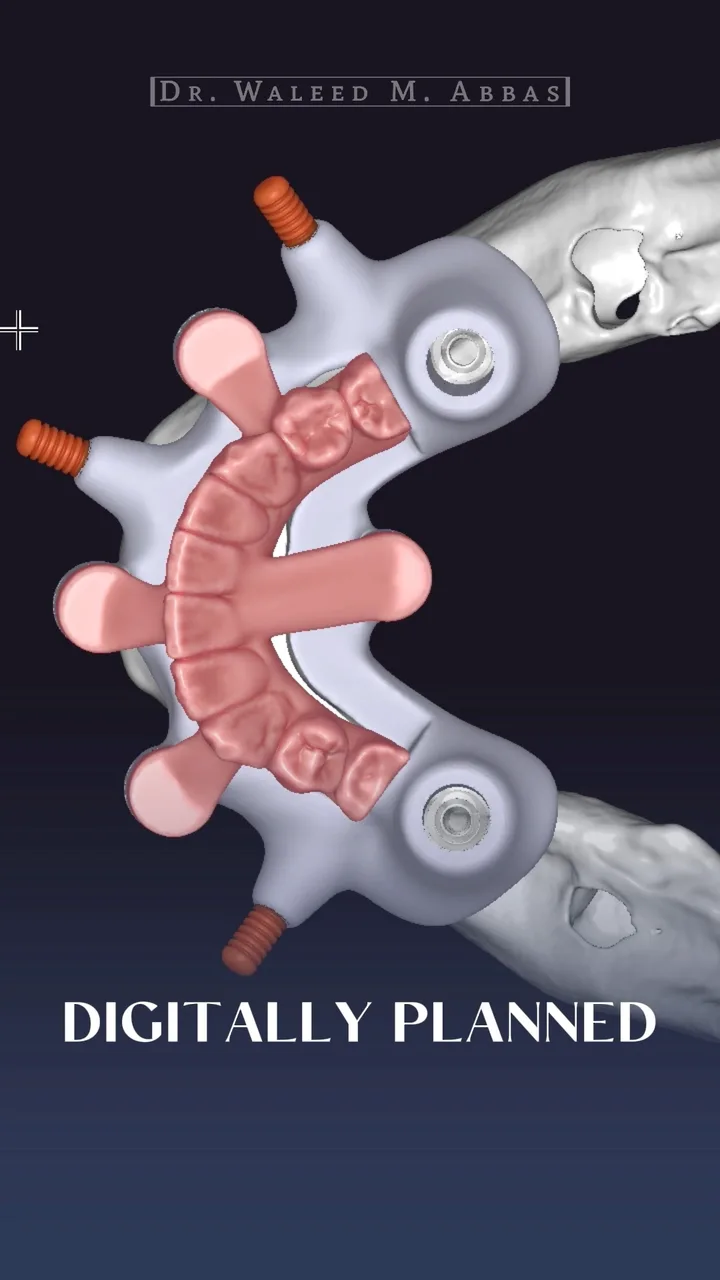

The guide
Pinned, with custom sleeves
Three lateral fixation pins (Ø1.5 × 20 mm) hold the guide on one reference for every osteotomy and insertion. Its custom sleeves sit 9.02 mm above the implant platform at 33, 34, 43 and 44, and 10.52 mm at 36 and 46.

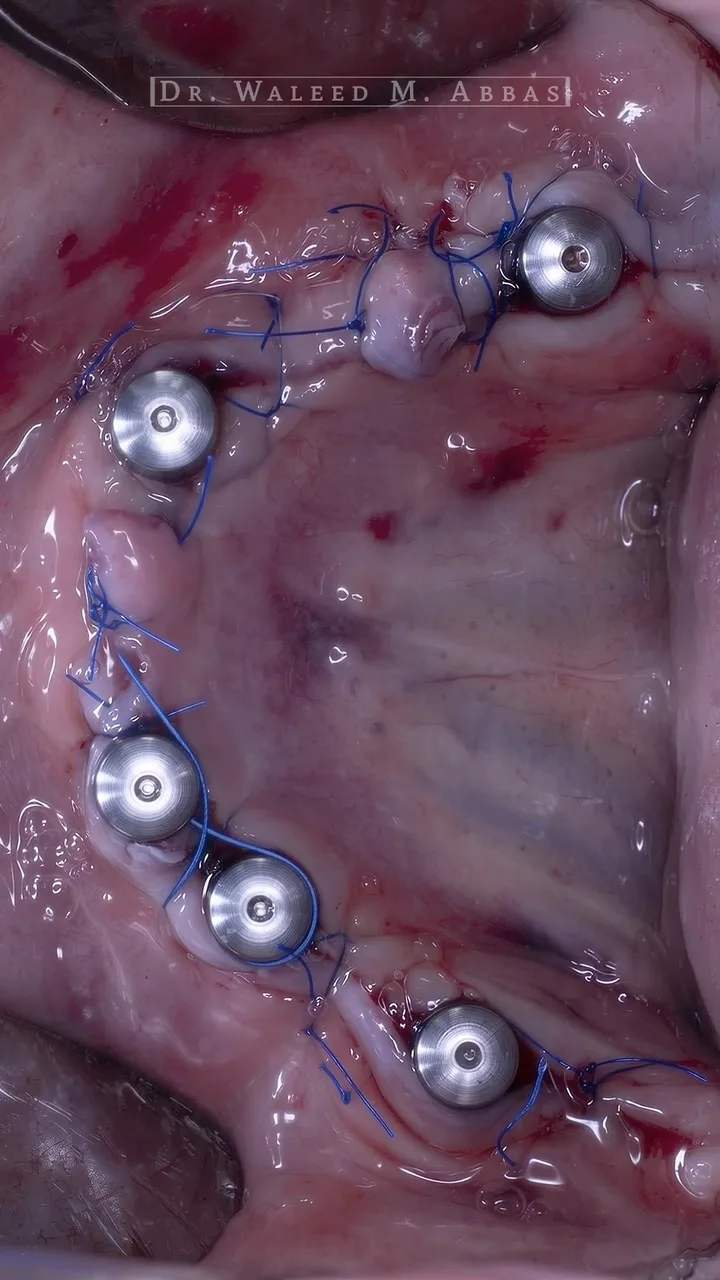

What comes next
The full-arch prosthesis
With MULTI-IM® abutments on all six implants, the arch is ready for a screw-retained full-arch restoration. This page will follow the case to its prosthetic result.

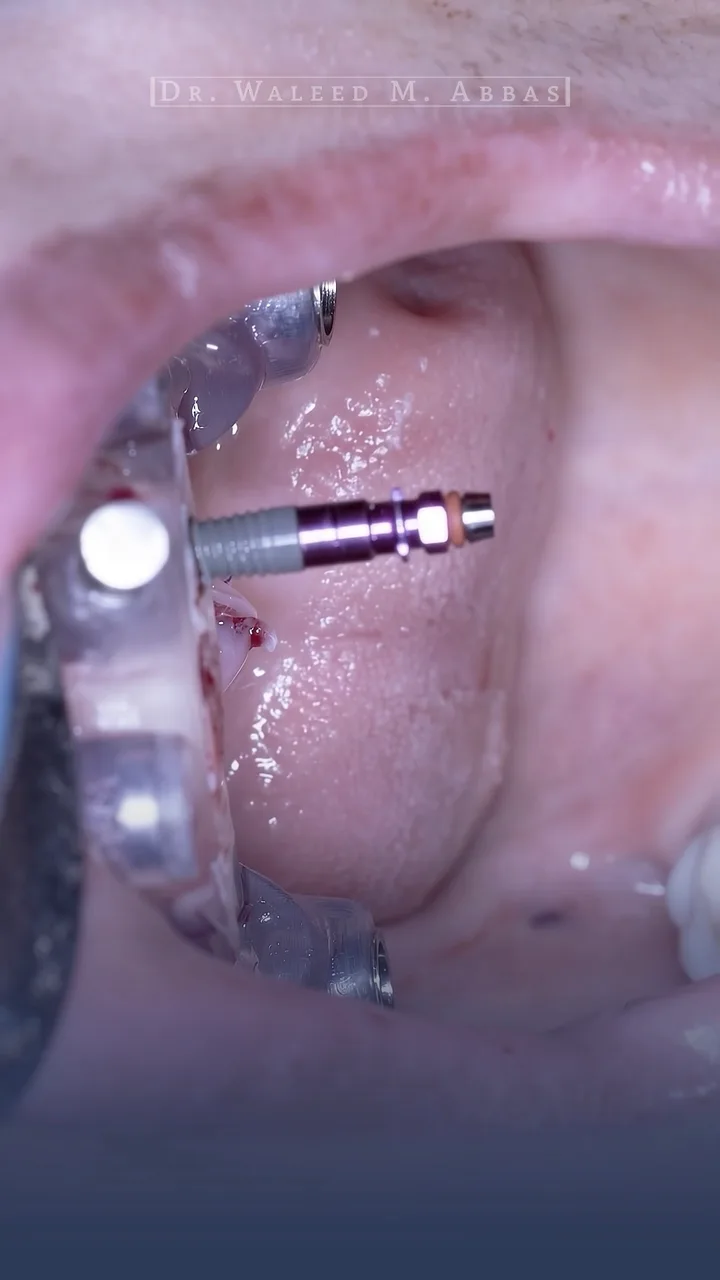

From plan to placement
Three moments from the film
Credits
The team behind the case
Surgery
Prof. Dr. Waleed Abbas
Guided surgery design
Dr. Dina Abed
Photon Dental Lab
CBCT imaging
Photon Scan
Implants & components
BTI Biotechnology Institute
supplied by Integra Egypt
Photon Scan and Photon Dental Lab are part of Photon.Group, Integra's independent partner for imaging, planning and laboratory work. Film by Prof. Dr. Waleed Abbas.
Clinical case shared for dental professionals. The patient's identity is withheld. Planning values are taken from the guide plan; outcomes depend on case selection and clinical protocol.
